| 材質Material | 球體 Ball |
| 不銹鋼SUS | 不銹鋼SUS |
產品規格

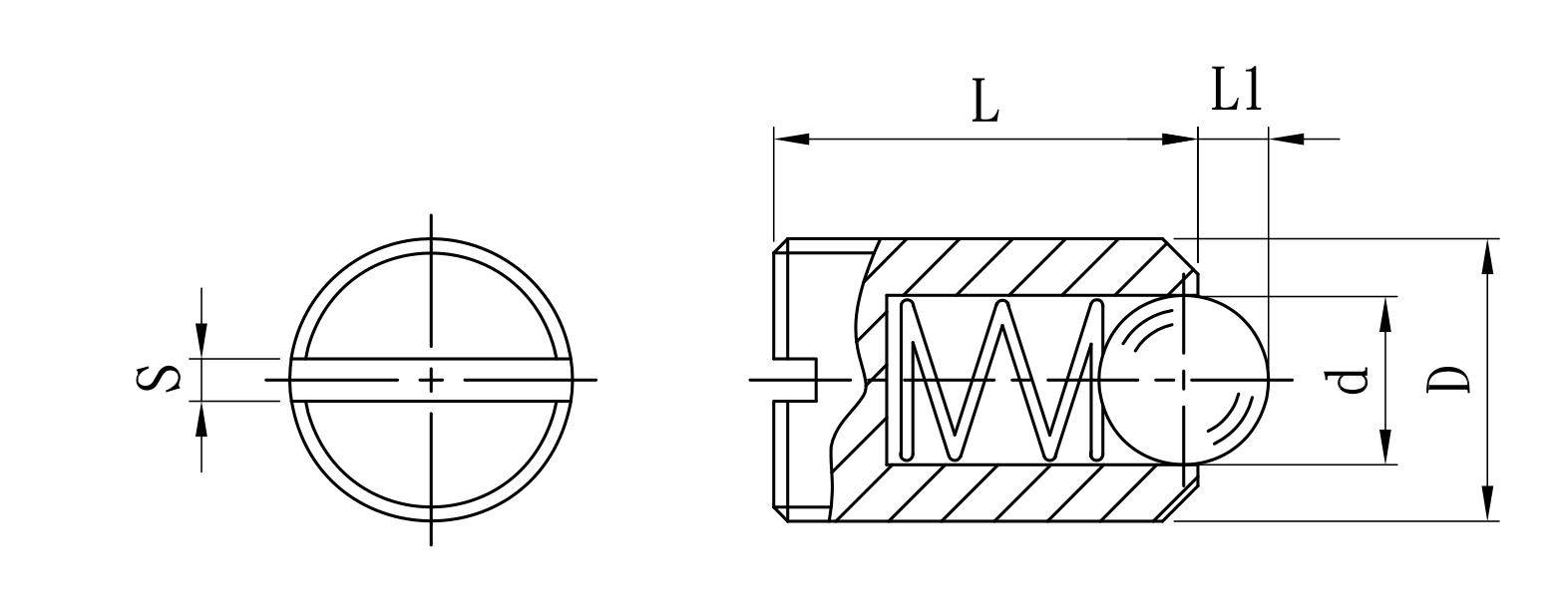

| 貨 號 | D | L | d | L1 | S | 荷重N |
| Z132 | M3 | 4 5 | 1.5 | 0.5 | 1 | 1.5-2.9 |
| M4 | 5 6 | 2 | 0.7 | 1 | 3.9-9.8 | |
| M5 | 5 6 12 | 2.5 | 0.8 | 1.2 | 4.9-19.6 | |
| M6 | 6 7 8 9 | 3 | 1.2 | 1.2 | 4.9-29.4 | |
| M8 | 8 10 12 | 5 | 2 | 1.5 | 12.7-39.2 | |
| M10 | 12 | 8 | 2.5 | 1.5 | 18.6-49 |
| 材質Material | 球體 Ball |
| 不銹鋼SUS | 不銹鋼SUS |
| 貨 號 | D | L | d | L1 | S | 荷重N |
| Z132 | M3 | 4 5 | 1.5 | 0.5 | 1 | 1.5-2.9 |
| M4 | 5 6 | 2 | 0.7 | 1 | 3.9-9.8 | |
| M5 | 5 6 12 | 2.5 | 0.8 | 1.2 | 4.9-19.6 | |
| M6 | 6 7 8 9 | 3 | 1.2 | 1.2 | 4.9-29.4 | |
| M8 | 8 10 12 | 5 | 2 | 1.5 | 12.7-39.2 | |
| M10 | 12 | 8 | 2.5 | 1.5 | 18.6-49 |
