| 材質Material | 球體 Ball |
| 不銹鋼SUS | 工程塑膠 POM |
產品規格

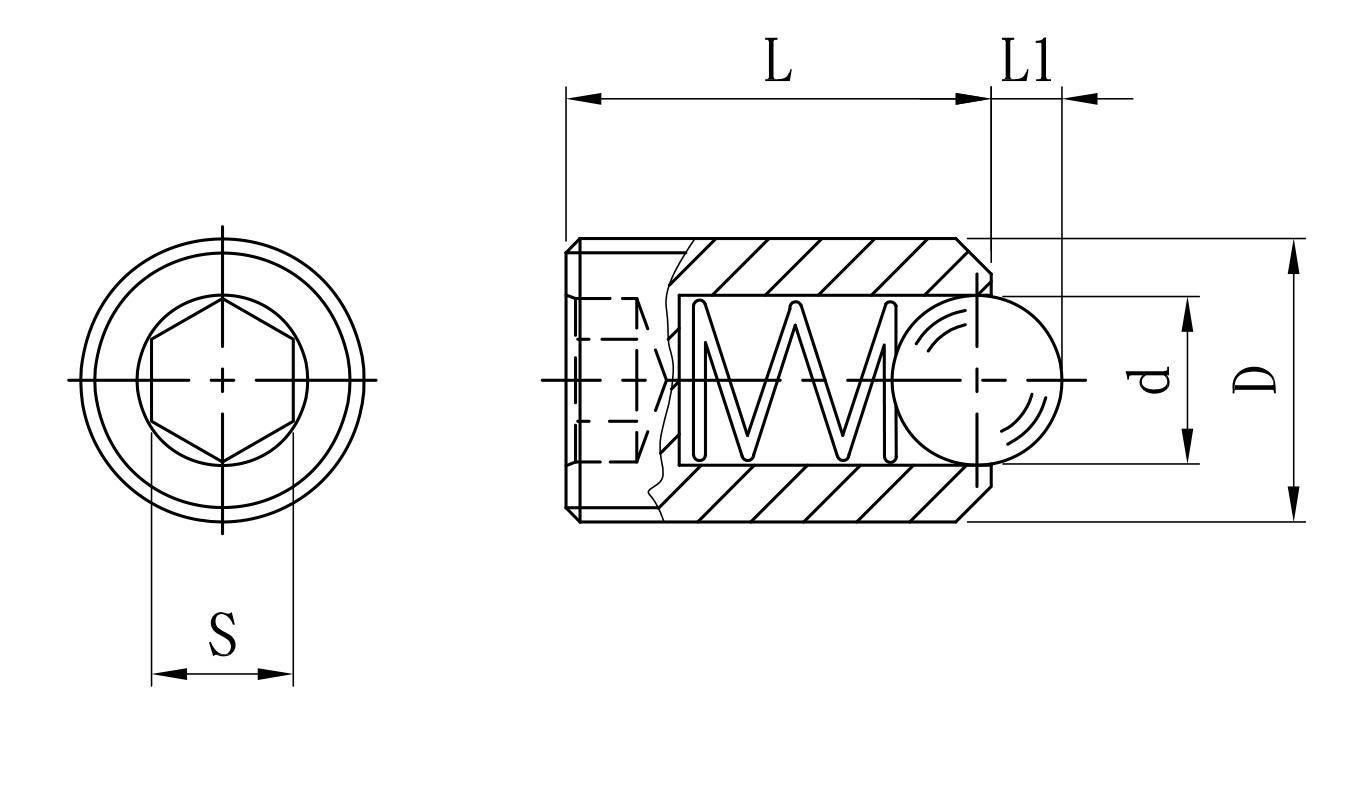

| 貨 號 | D | L | L1 | d | S | 荷重N |
| Z127 | M3 | 6 8 10 | 0.5 | 1.5 | 1.5 | 0.3 |
| M4 | 8 10 12 | 0.7 | 2 | 2 | 0.6 | |
| M5 | 10 12 16 | 0.8 | 2.5 | 2.5 | 1 | |
| M6 | 8 13 16 | 1.2 | 3 | 3 | 1.6 | |
| M8 | 16 20 25 | 2 | 5 | 4 | 2.4 | |
| M10 | 16 20 25 | 2.5 | 6 | 5 | 3 | |
| M12 | 20 25 30 | 3 | 8 | 6 | 3.5 | |
| M16 | 25 30 | 4 | 10 | 8 | 5.7 |
