| 材質Material | 顏色 Color |
| 鑄鐵 GG | 鍍亮鉻 CR |
產品規格

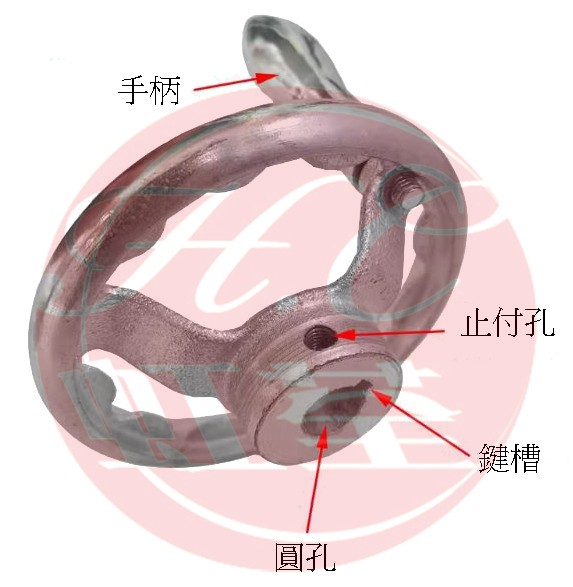

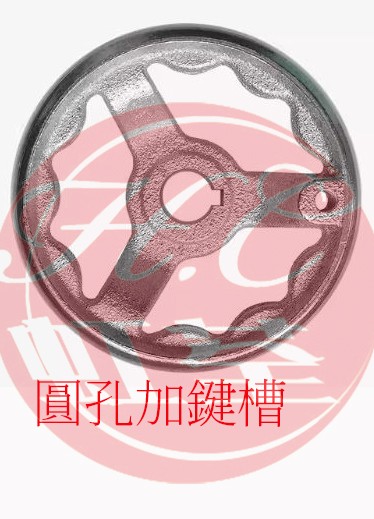

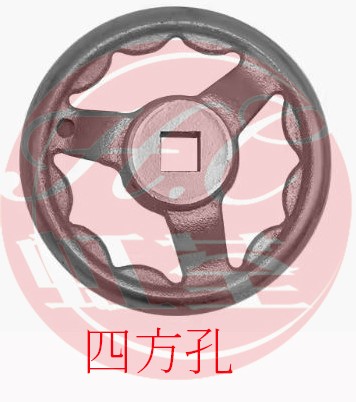

可加工 內孔 止付螺絲孔 鍵槽 螺紋孔 T型螺紋孔 四方孔

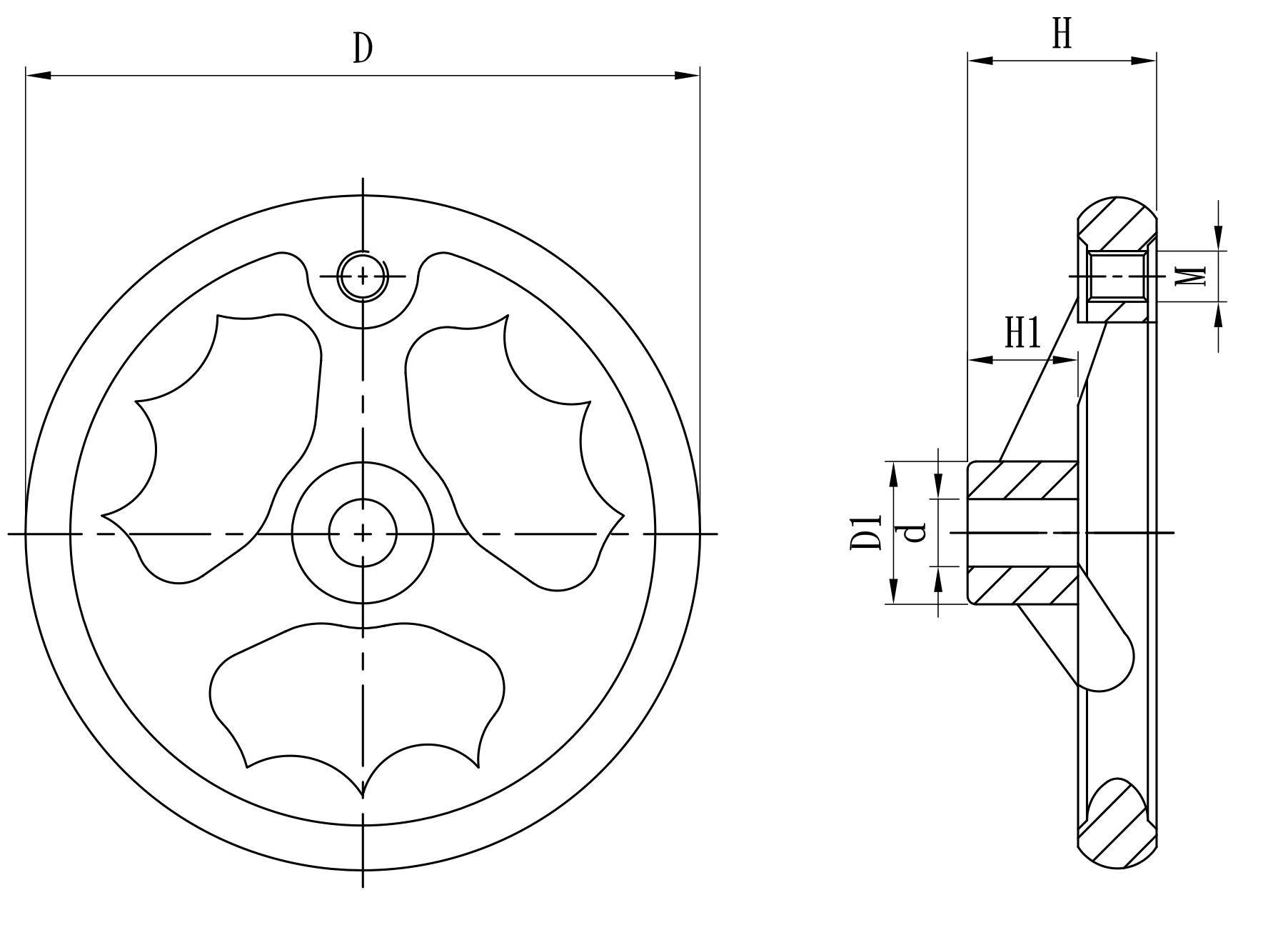

| Type | D | d | H | H1 | D1 | M |
| W101 | 50 | 6 | 28 | 12 | 21 | - |
| 70 | 6 | 29 | 9 | 25 | - | |
| 100 | 7 | 37 | 12 | 31 | - | |
| 120 | 9 | 44 | 15 | 37 | M8 | |
| 150 | 9 | 59 | 15 | 43 | M10 | |
| 160 | 9 | 51 | 15 | 43 | M10 | |
| 200 | 9 | 58 | 18 | 46 | M10 | |
| 250 | 9 | 63 | 18 | 53 | M10 | |
| 300 | 9 | 84 | 22 | 64 | M10 | |
| 350 | 9 | 78 | 22 | 75 | M10 | |
| 400 | 10 | 85 | 25 | 85 | M10 | |
| 470 | 10 | 100 | 48 | 72 | M10 | |
