| 本體Basic structure | 油封Sealing screen |
| 工程塑膠 POM | 橡膠NBR |
產品規格

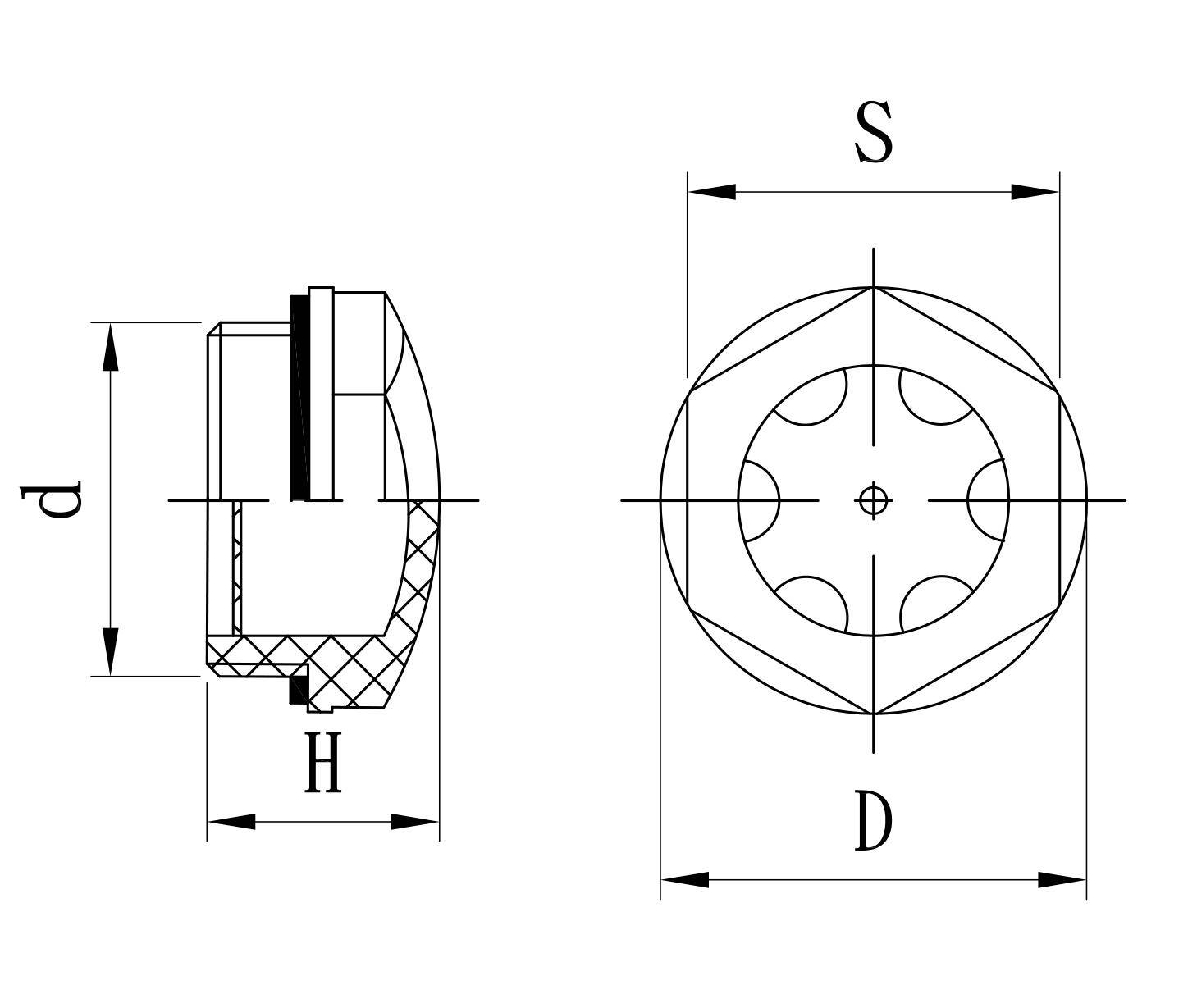

| 貨號 | d | D | H | S | |
| 公制 | 英制 | ||||
| C030 | M16*1.5 | 3/8 | 22 | 17 | 17 |
| M18*1.5 | 25 | 17 | 22 | ||
| M20*1.5 | 1/2 | 27 | 18 | 24 | |
| M22*1.5 | 27 | 18 | 24 | ||
| M24*1.5 | 31 | 18 | 27 | ||
| M26*1.5 | 3/4 | 31 | 18 | 27 | |
| M27*1.5 | 36 | 18 | 31 | ||
| M30*1.5 | 36 | 19 | 32 | ||
| M33*1.5 | 1 | 41 | 19 | 36 | |
| M36*1.5 | 46 | 22 | 41 | ||
| M42*1.5 | 1-1/4 | 52 | 24 | 46 | |
| M60*2 | 2 | 71 | 28 | 62 | |
